Training Boards

All the boards are available in two options: assembled by Walltopia or DIY structure

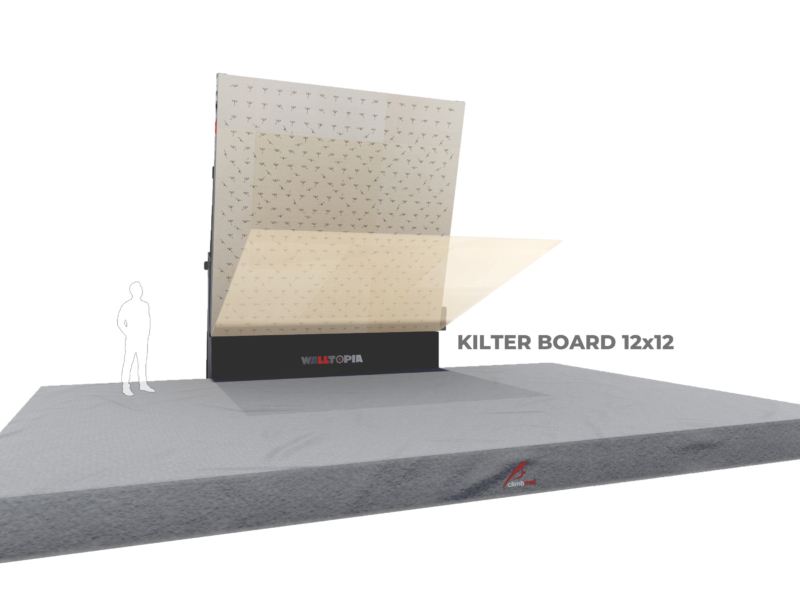

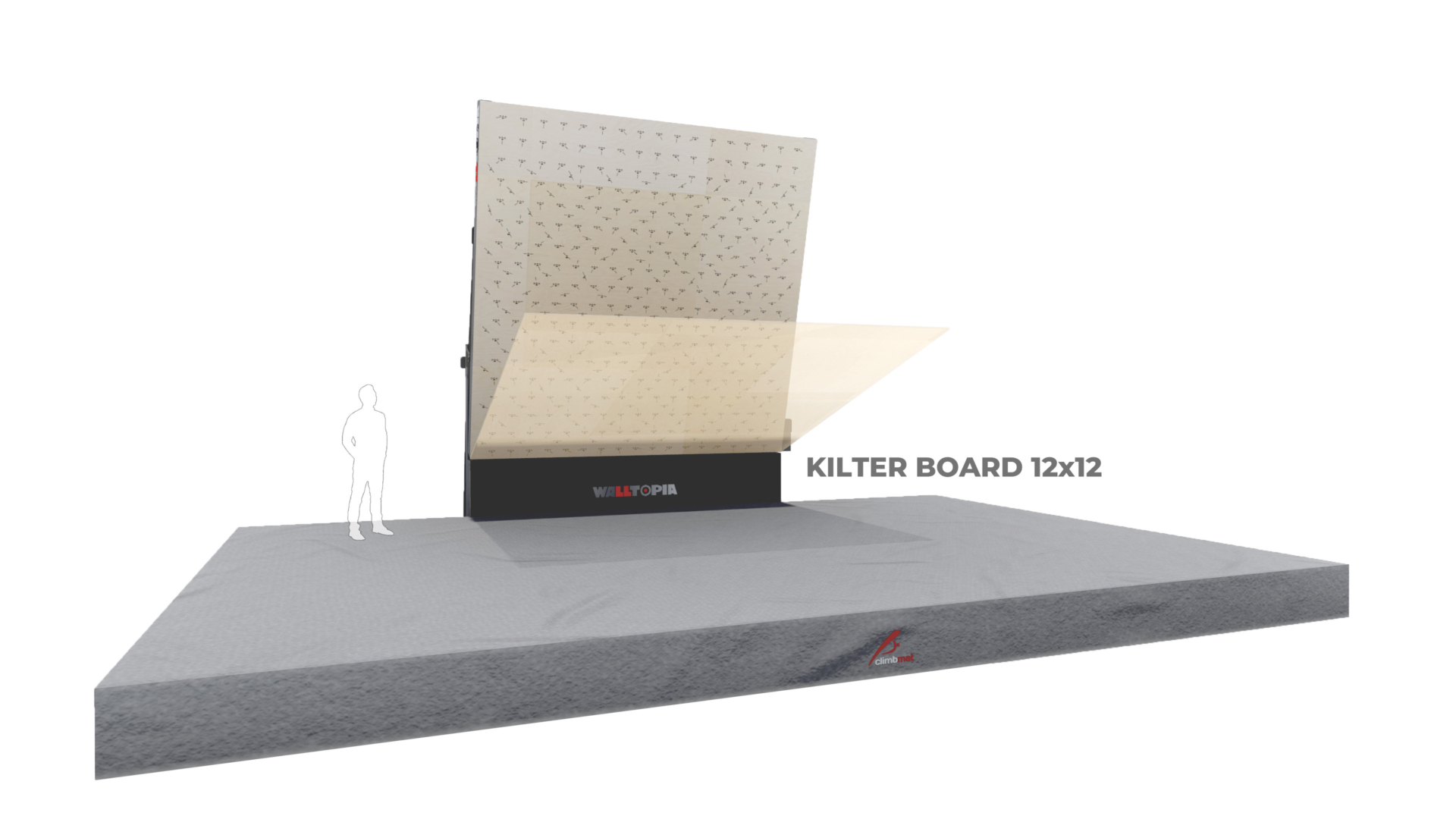

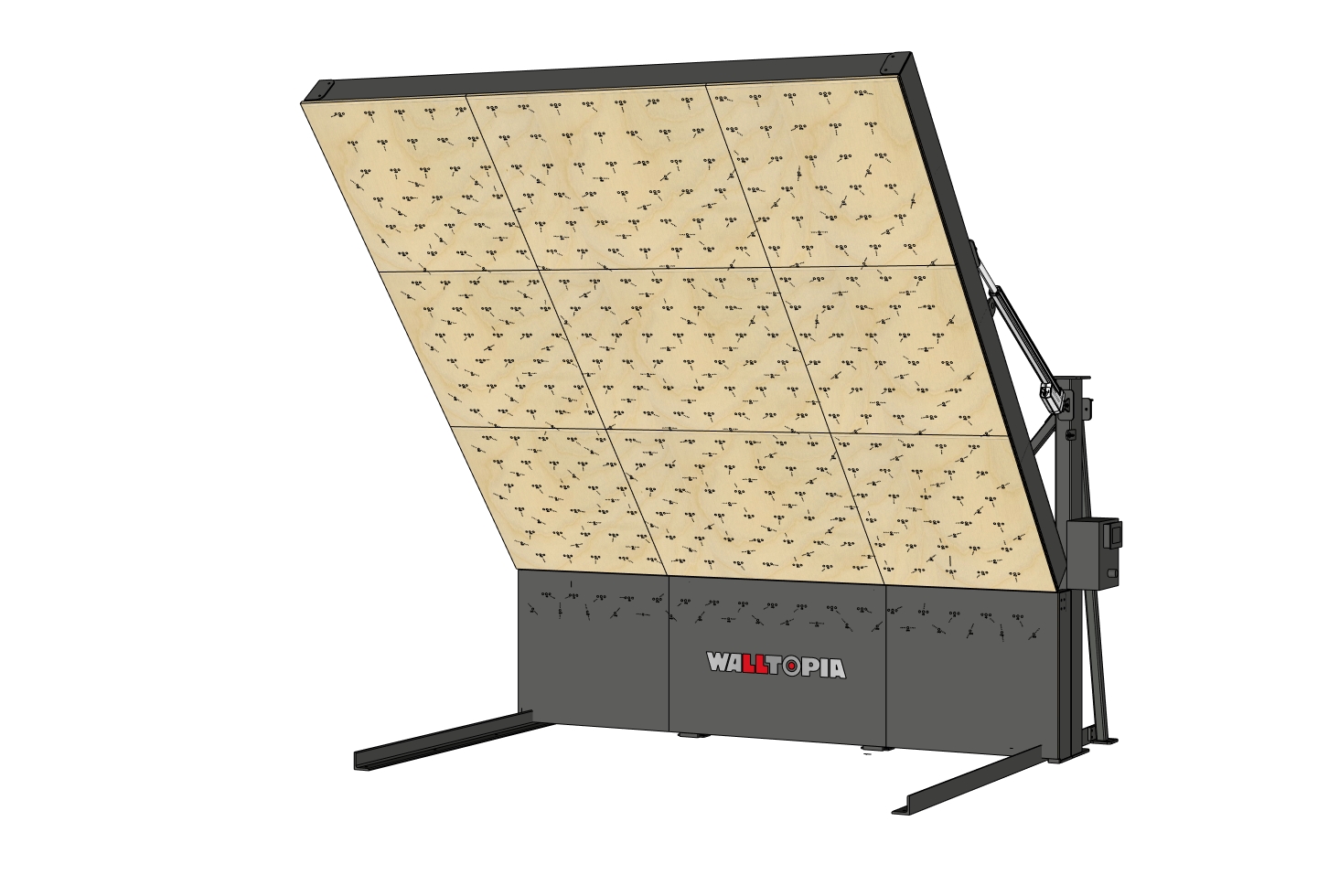

Kilter Board

  • Overhang: Walltopia adjustable frame or a fixed angle as per client’s request
  • Standard holds sets: available for order through Walltopia at an additional charge.
  • LED hardware: included in the price
  • Climbing surface area:
    Kilter Board Commercial: 12x12ft (366x366cm)
    Kilter Board Half: 8×12 ft (244×366 cm)
    Made to fit narrow spaces
    Kilter Board Short: 7×10 ft (213×305 cm)
    Made to fit shorter spaces

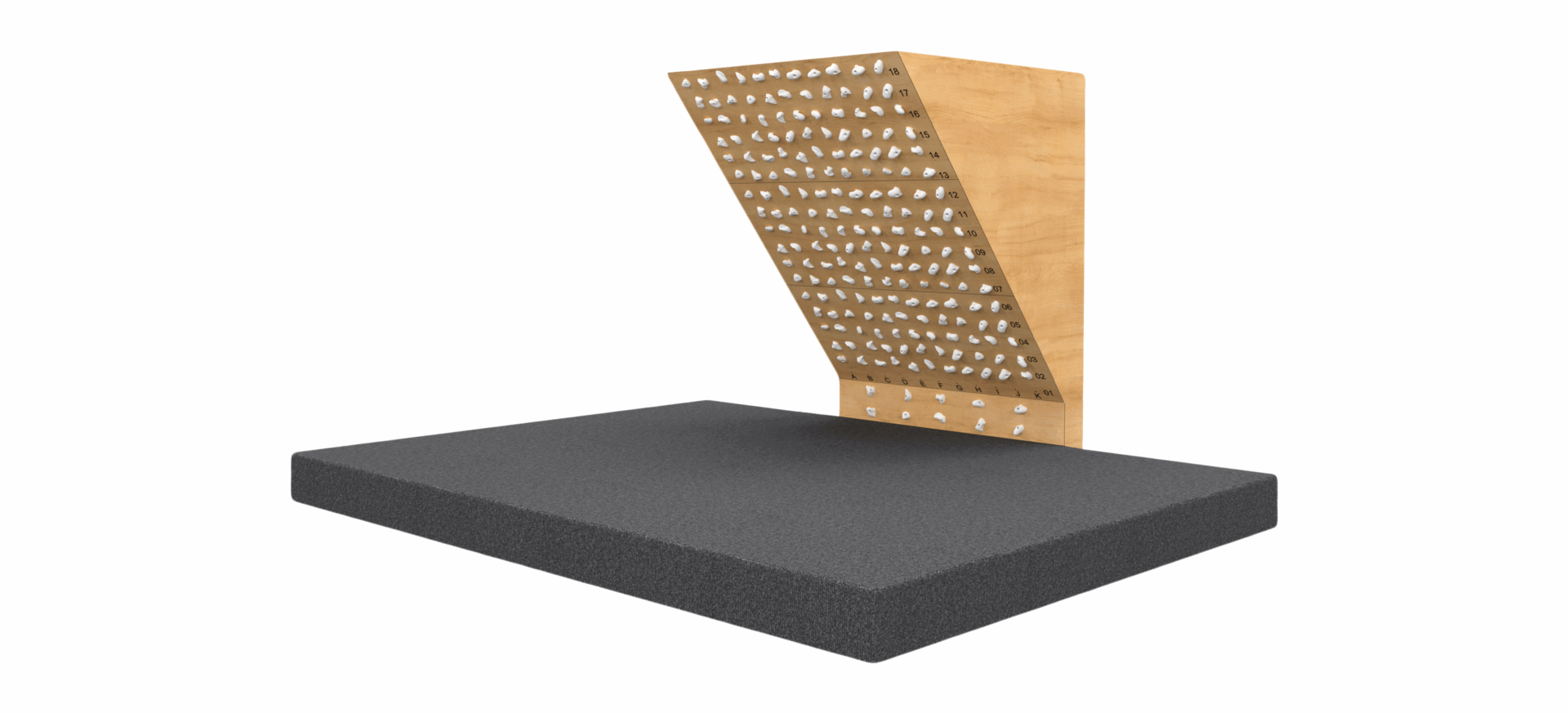

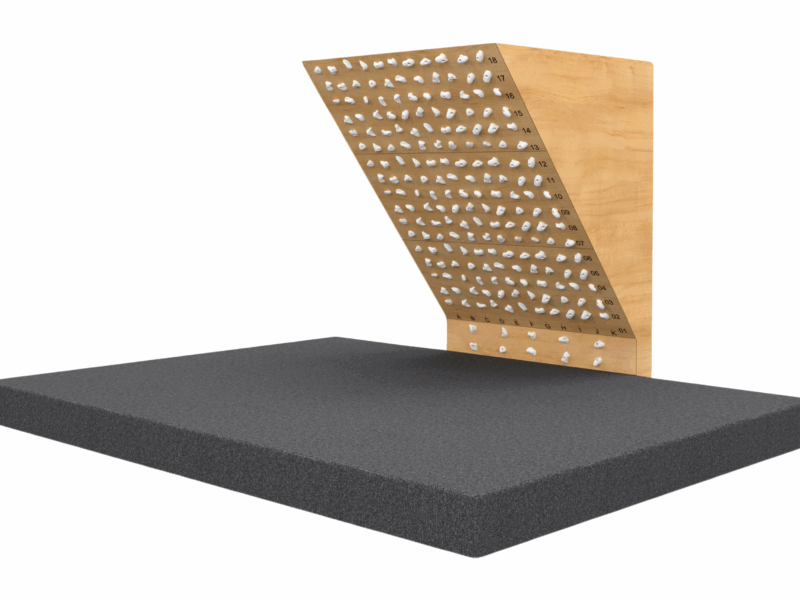

Moon Board

  • Overhang: 40°
  • Standard holds sets: available for order through Walltopia at an additional charge
  • LED hardware: available to order through Walltopia at an additional charge
  • T-nut spacing: 20 x 20 cm
  • Climbing surface area: 9.8 m2 (105.5 sq.ft)

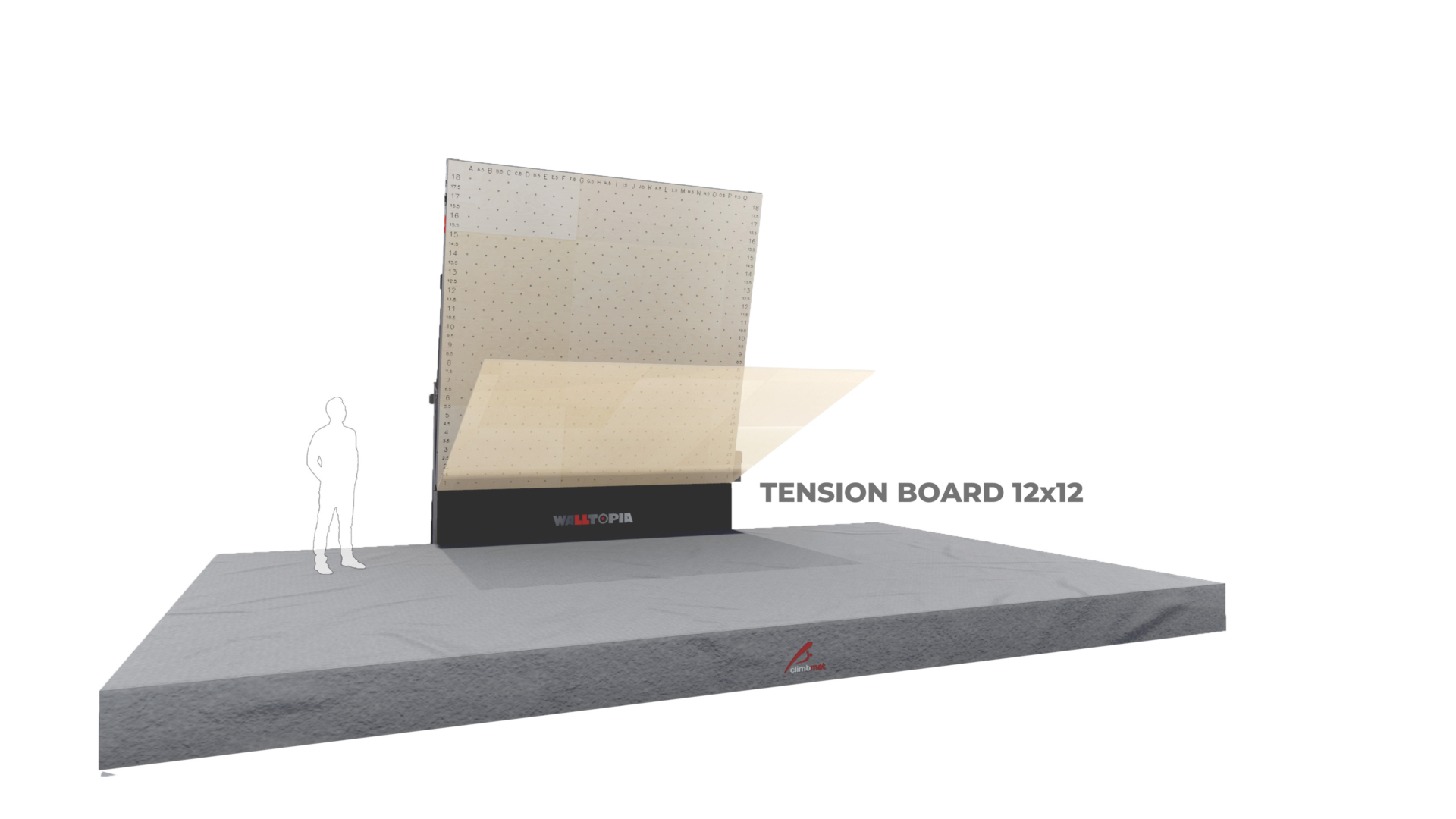

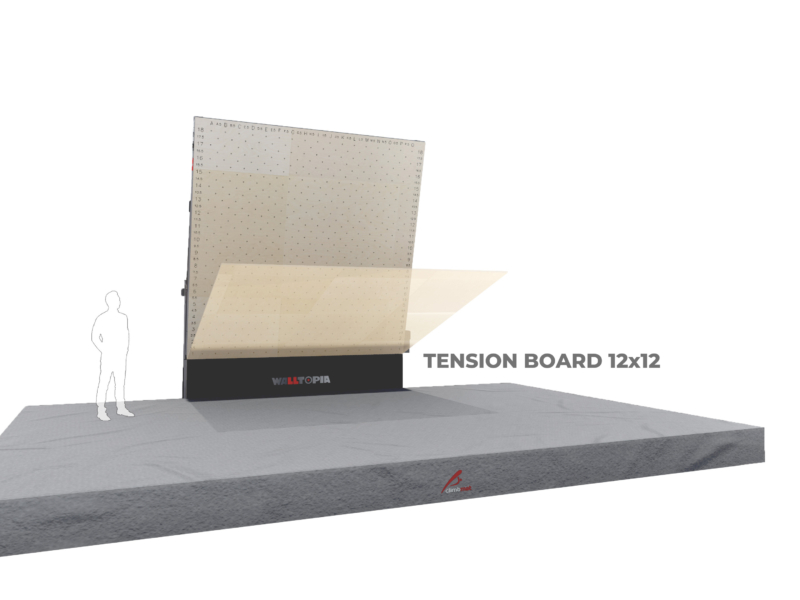

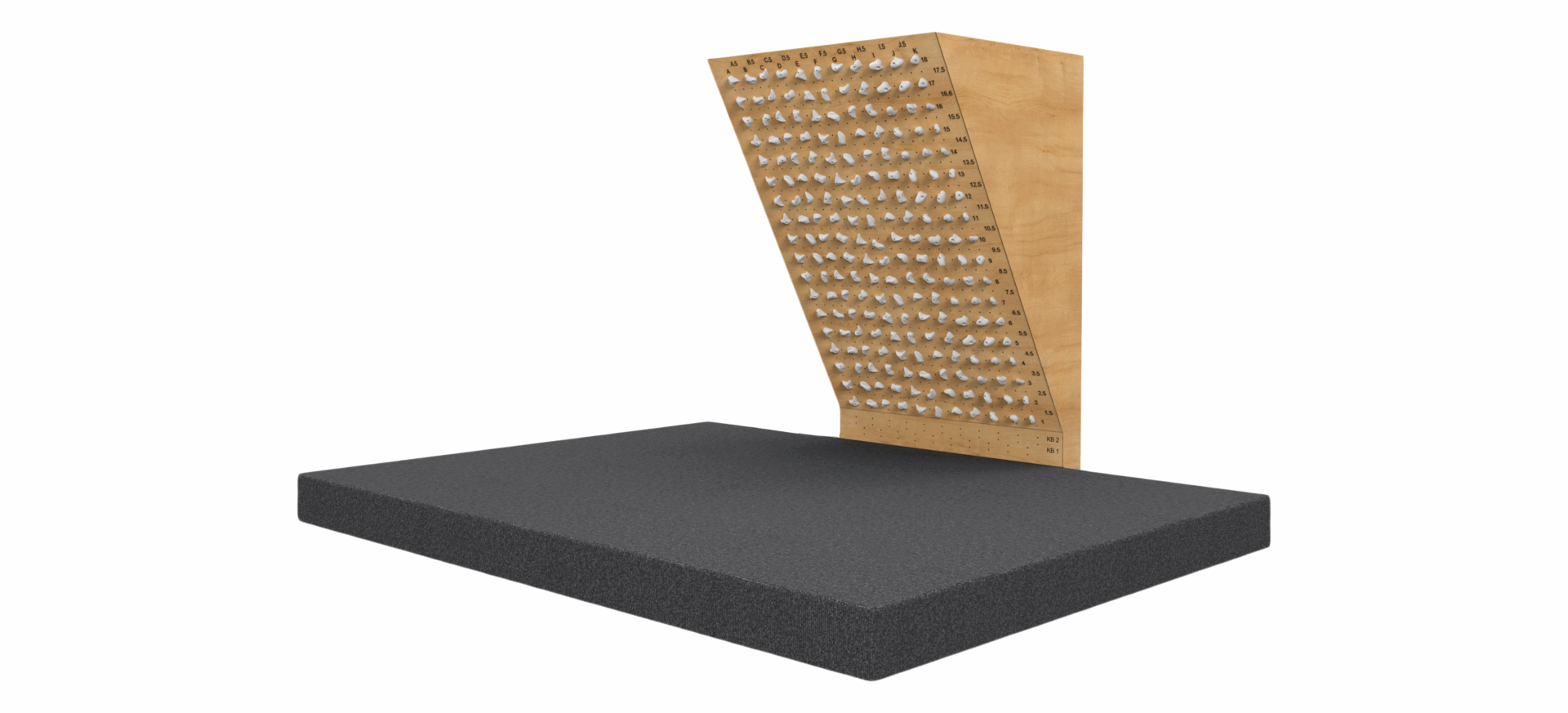

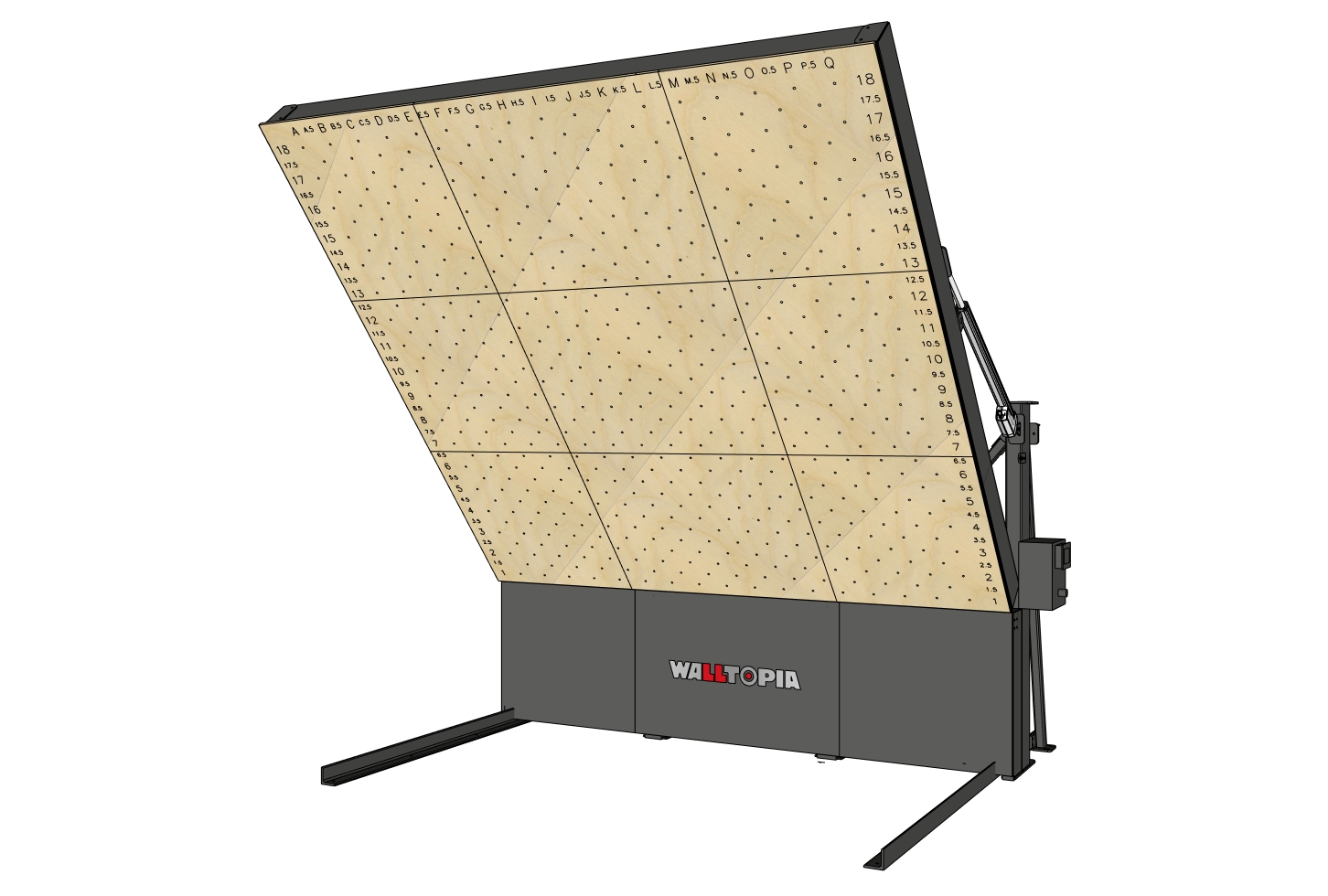

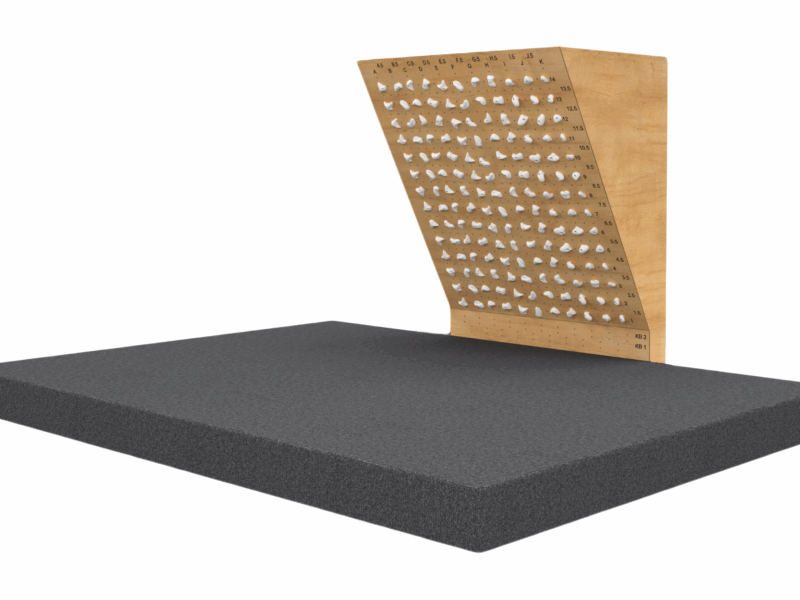

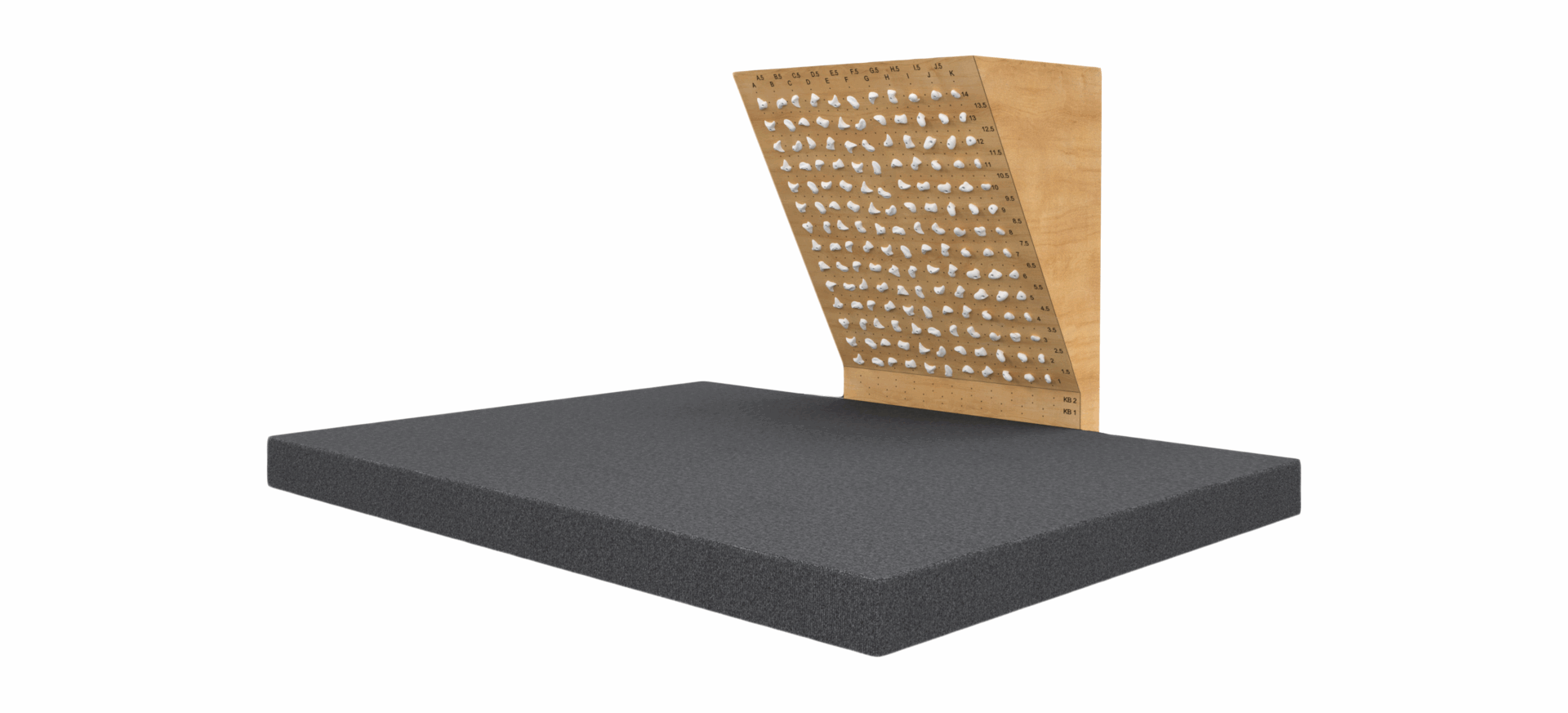

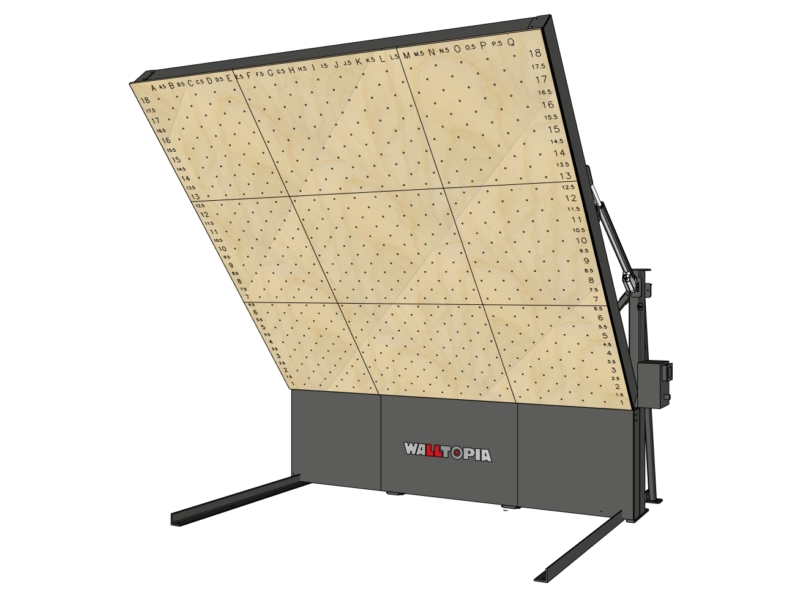

Tension Board

  • Overhang: Walltopia adjustable frame or a fixed angle as per the client’s request.
  • Standard holds sets: available for order through Walltopia at an additional charge
  • LED hardware: available to order through Walltopia at an additional charge
  • T-nut spacing: 20 x 20 cm (optional 10 x 10 cm)
  • Climbing surface area:
    Tension Board Classic: 9.6 m2 (103 sq.ft)
    Tension Board Short: 8 m2 (86 sq.ft)
    Made to fit narrow spaces
    Tension Board Shotr&Narrow: 5.2 m2 (56 sq.ft)
    Made to fit shorter spaces

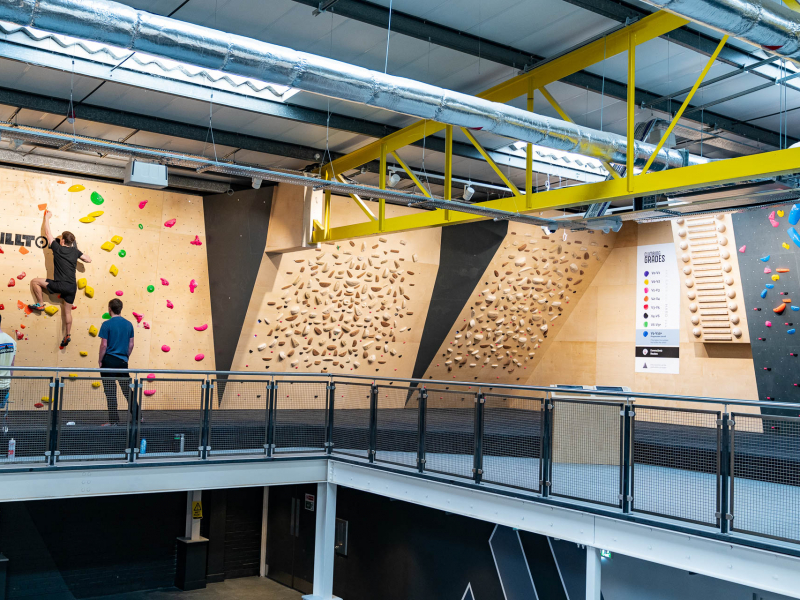

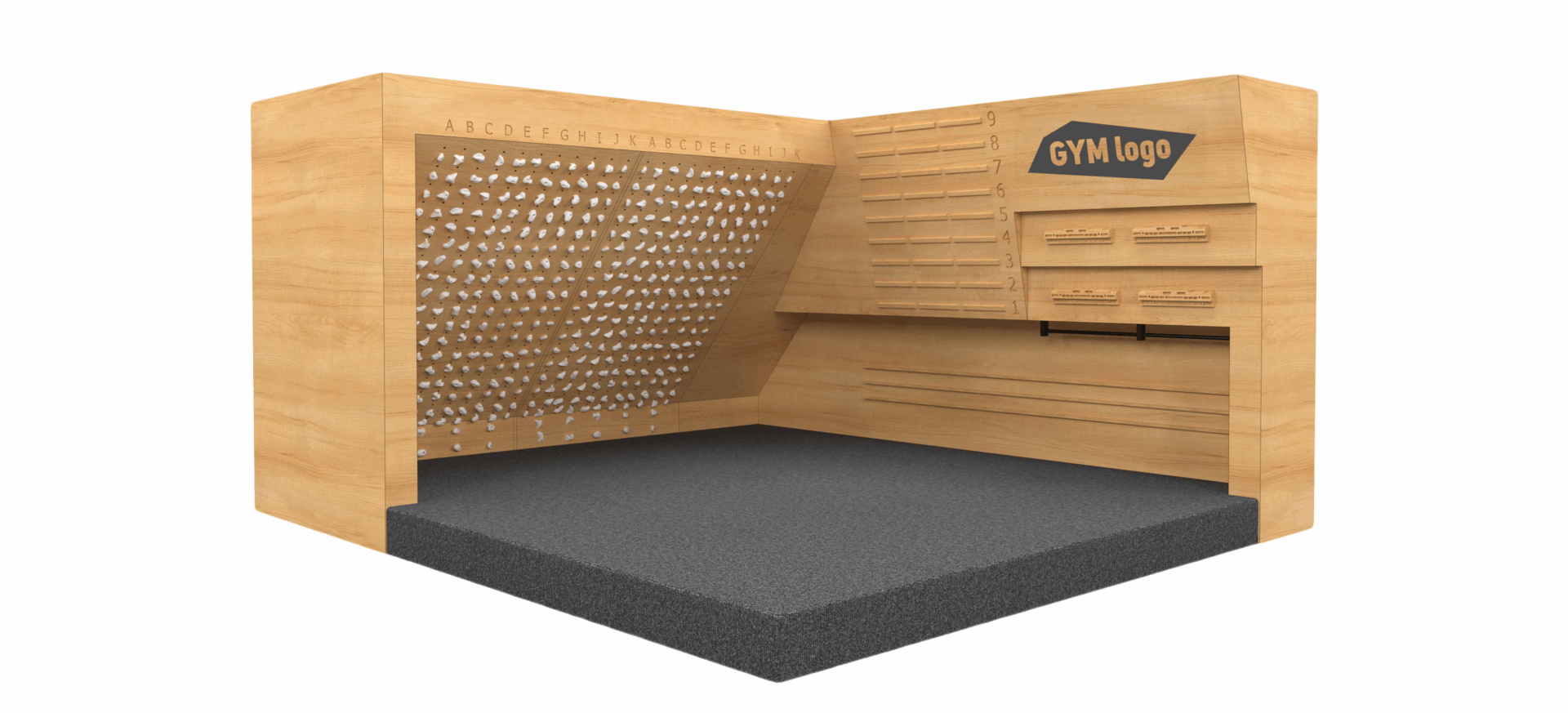

L-shape training zone

It’s a common practice for climbing gyms to build training walls along building corners. We developed a signature design that can be taken as a template and adjusted based on the client’s preference. One side of the unit is a 40° overhanging wall (angle may vary upon request) with a size that can accommodate a commercial Kilter Board or a combination of two smaller boards such as Moon board, a full size Tension board, a full size Kilter board. The other side of the unit consists of standard campus wall with a width depending on the number of campus lines required.

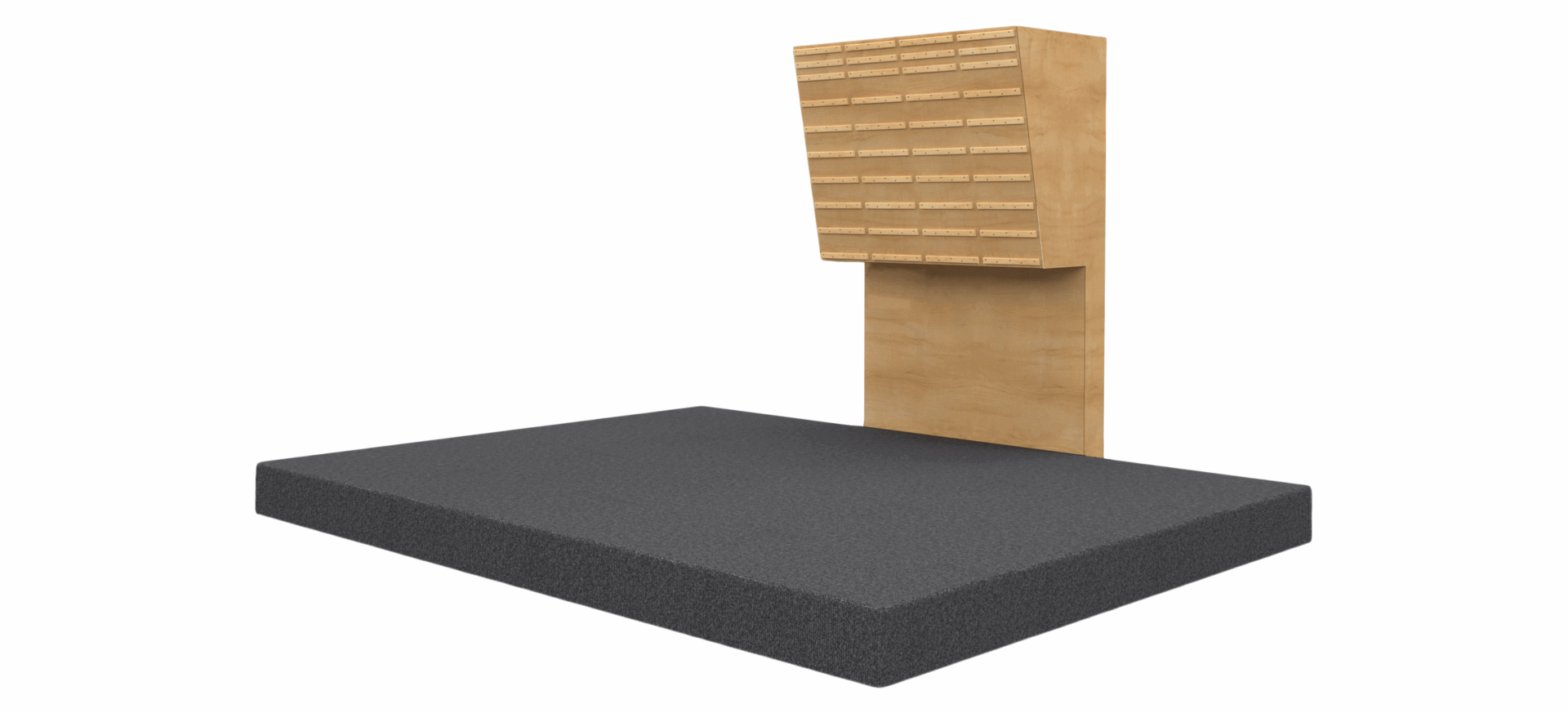

Campus Board

  • Overhang: 15°
  • Campus rungs count: 10
  • Campus rungs width: 50 cm (20″)
  • Surface area of a one-line campus board: 2.2 m2 (24 sq.ft)

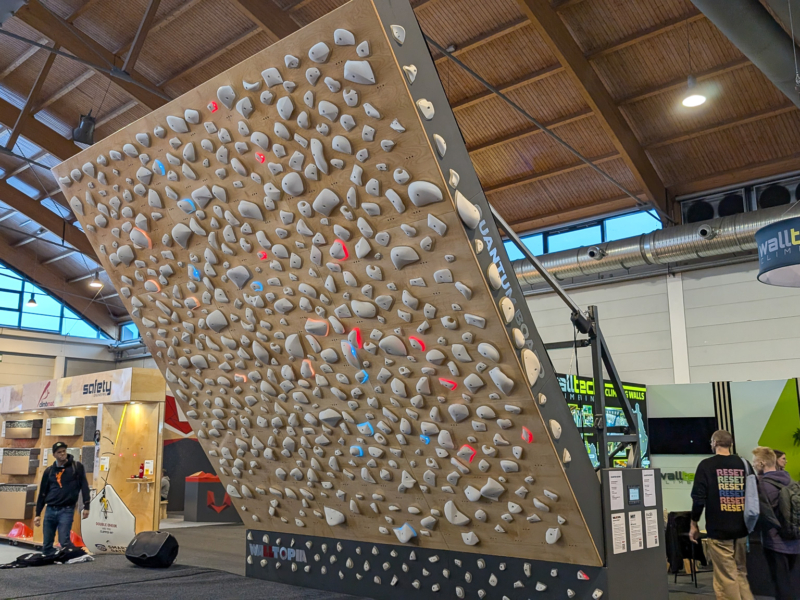

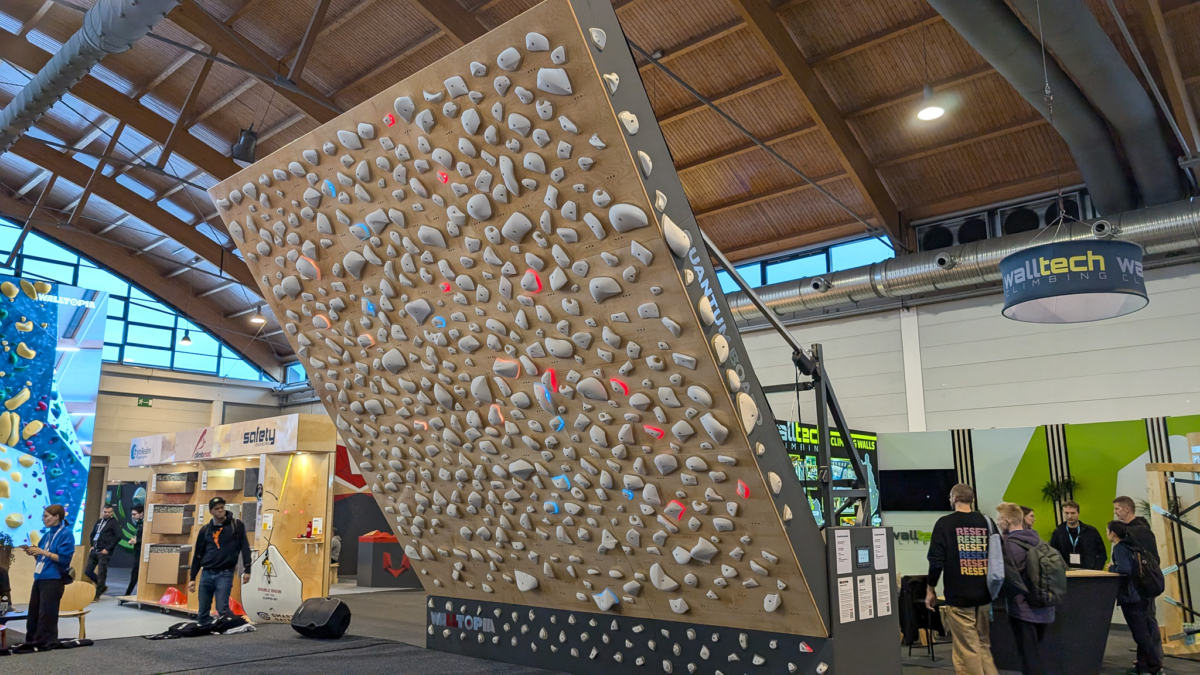

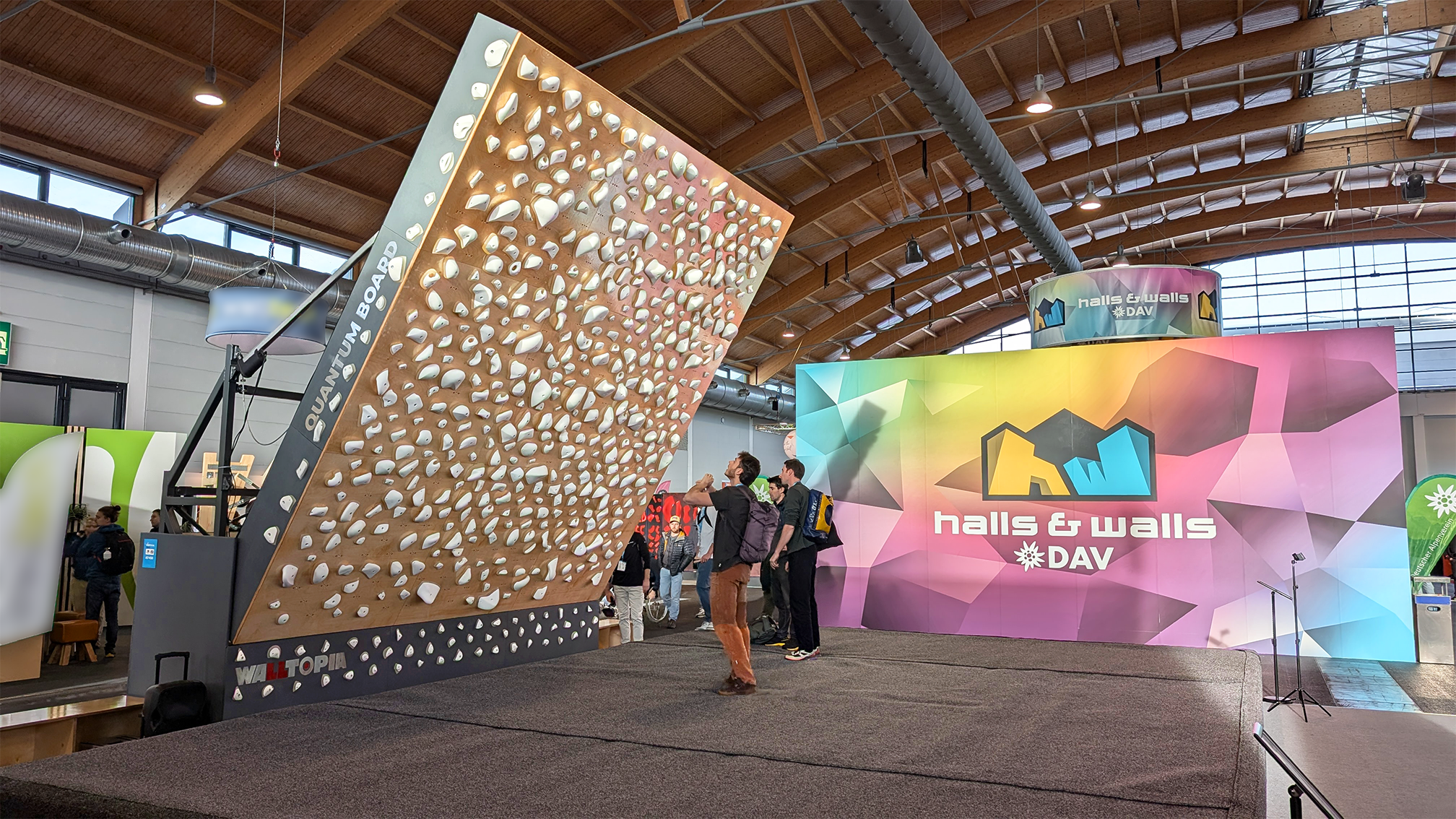

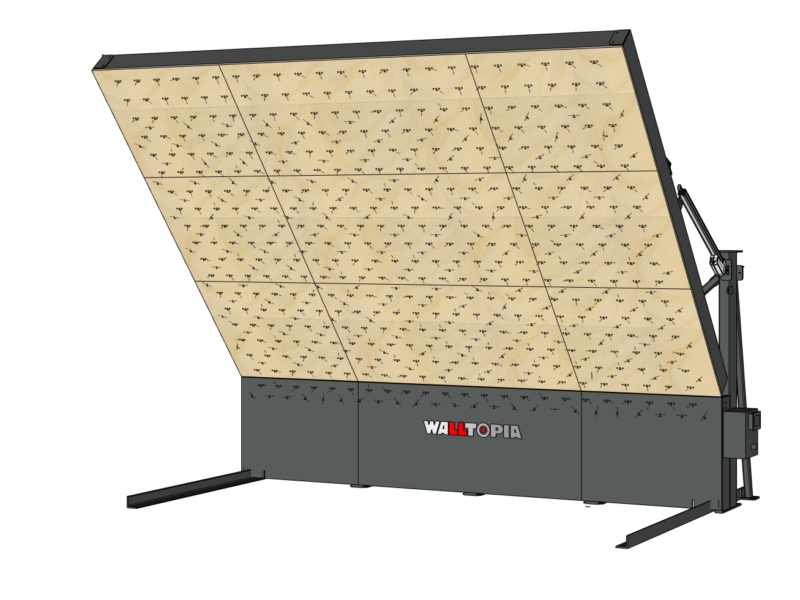

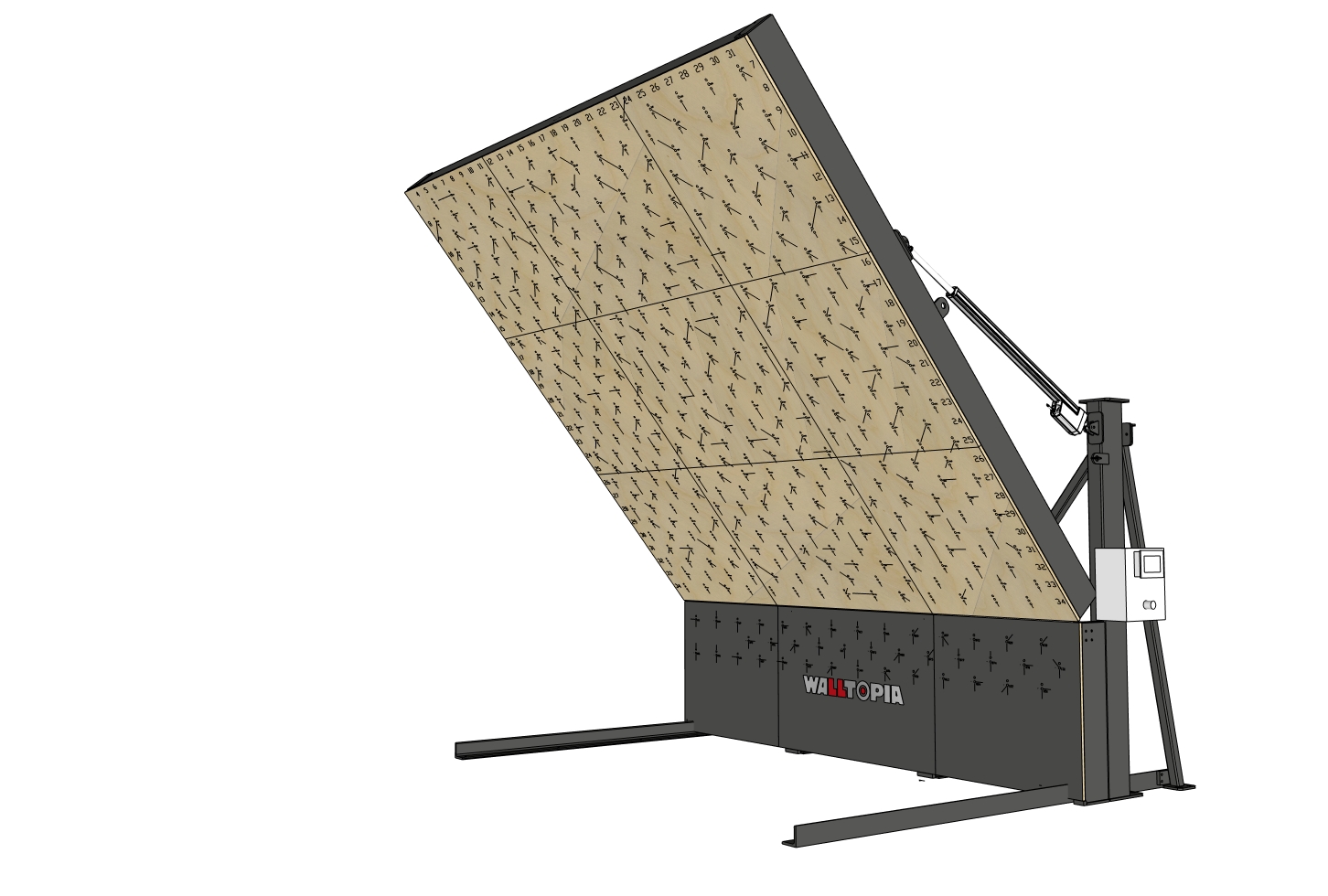

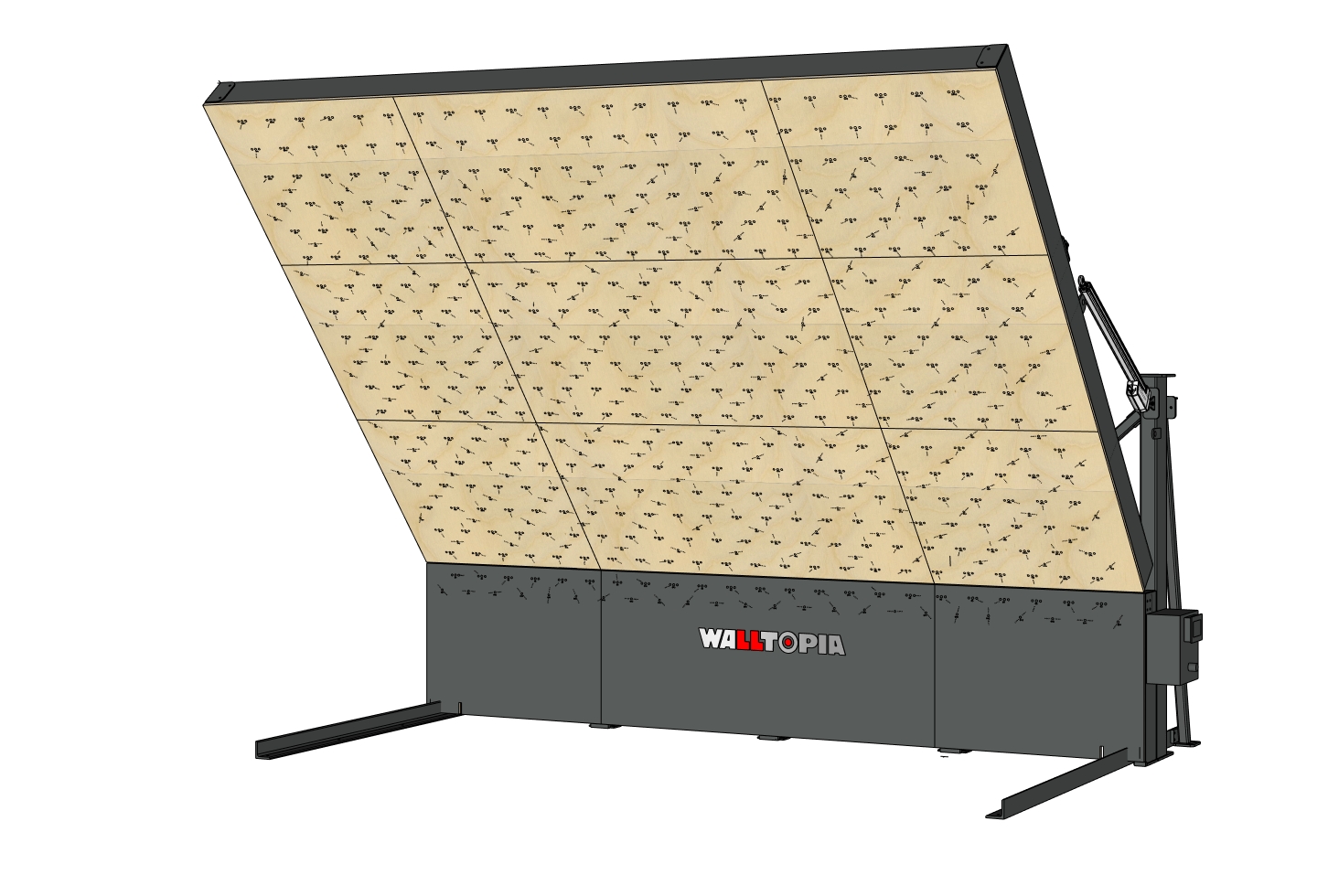

Adjustable Angle Wall

Most of the widely used training boards can be mounted on an angle-changing frame. This allows to modify the difficulty of the very same board setup by adjusting the inclination of the wall. We offer two variations of angle changing frame: hydraulic and electrical. The electric requires no maintenance as opposed to the hydraulic one which is the economy solution at the cost of daily oil and pressure level checks of the hydraulic system. Both variations are engineered to comply with the standards for loads of boulder wall at every angle of inclination they can be used.

  • Overhang: 0° to 70°
  • Electrical system: No maintenance required
  • Hydraulic system: Less expensive option; requires daily oil level and pressure checks
  • Standards compliance: fully compliant with EN boulder wall standard for loads applied to every angle position.
  • LED hardware: available to order through Walltopia at an additional charge
  • T-nut spacing: 10 x 10 cm
  • Climbing surface area: 9.8 m2 (105.5 sq.ft)


WALLTOPIA FLEX BOARD: THE BIGGEST TRAINING BOARD THAT TAKES THE LEAST SPACE



  • The ultimate space utilization solution
  • Diverse training options
  • Variety of grips
  • Easy to self-assemble
  • Perfect for both home trainign and gym trainng zones.

Space utilisation is key to good customer experience in a climbing gym. Room for training zones can be easily overlooked in favour of more climbing surface but it is crucial for developing strength and improving climbing skills. That is why we created a training board that provides great training and takes minimum room.

Walltopia Flex Board is an inovative training board designed to make optimal use of the space available while providing top-notch training solution. The Flex Board consists of 1×1 m panels that can be adjusted at any desired angle and a special selection of holds and volumes that covers an extensive amount of grips offering diverse training options.
When it comes to space saving, the Flex Board can be comfortably lifted to a flat position on the ceiling leaving the room beneath to be … well, room. Recent months proved that space utilisation is just as important when it comes to home training and Flex board is ready to cater to that as well.

The Flex Board is easy to self-assemble following a simple step-by-step manual. It does not require specialised tools or technicians and makes a handy training solution for both home training or climbing gyms.

A new Dimension in Home Training!

Basic Edition

  • Metal frames, pull up bar and 4 plywood panels
  • 4 pcs of pinches
  • 4 pcs of pockets
  • 2 hemispheres- 12 cm in diameter
  • 12 pcs wood crimps (6 sizes x 2 pcs each)
  • 2 balls – 12 cm in diameter
  • 2×110 cm long 6 mm cords – to attach the balls to the pull-up bar
  • Hardware for the main body
  • Hardware for the holds and accessories
  • 4-6 pcs of anchor rods
  • 6 mm and 8 mm L-shaped hex-keys

Butterfly Edition

  • Metal frames, pull up bar and 4 plywood panels
  • 4 pcs of pinches
  • HRT Butterfly finger-board
  • 2 hemispheres- 12 cm in diameter
  • 8 pcs wood crimps (6 mm, 8 mm, 10 mm, 15 mm x 2 pcs each)
  • 2 balls – 12 cm in diameter
  • 2×110 cm long 6 mm cords – to attach the balls to the pull-up bar
  • Hardware for the main body
  • Hardware for the holds and accessories
  • 4-6 pcs of anchor rods
  • 6 mm and 8 mm L-shaped hex-keys

Pulley System

The Pulley System is an optional add-on, not included in the Basic or Butterfly packages.

  • Metal arm
  • 2 pulleys
  • 2 maillons
  • 1 ring bolt – M10
  • 4 meters 6 mm cord

The average height of a training board usually reaches the point of 3 meters which can be treated as a bouldering wall when it comes to flooring. Our partner Climbat recommends their BM300 model suitable for training boards.

BM 300 Boulder Mat

Features:
• Thickness: 300 mm (12″)
• Multilayer design
• Overlapping layers technique
• Good walking stiffness
• Good energy absorption
• Recommended max fall height: 4m (13 ft)
• Compliance with AS 2316.1

Standard Options:
• PVC Vinyl, Modular & One cover
• Combo Vinyl + Carpet Top, Modular & One cover

Additional Options:
• Higher Fire rating
• Anti-static cover
